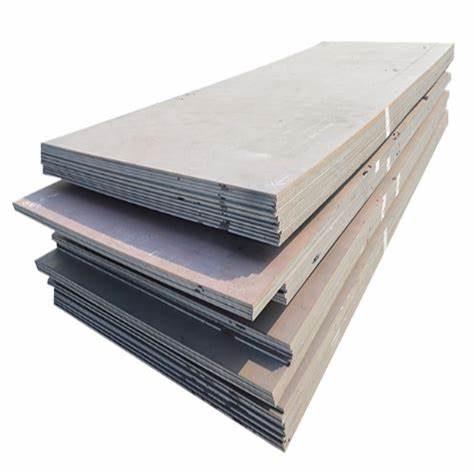

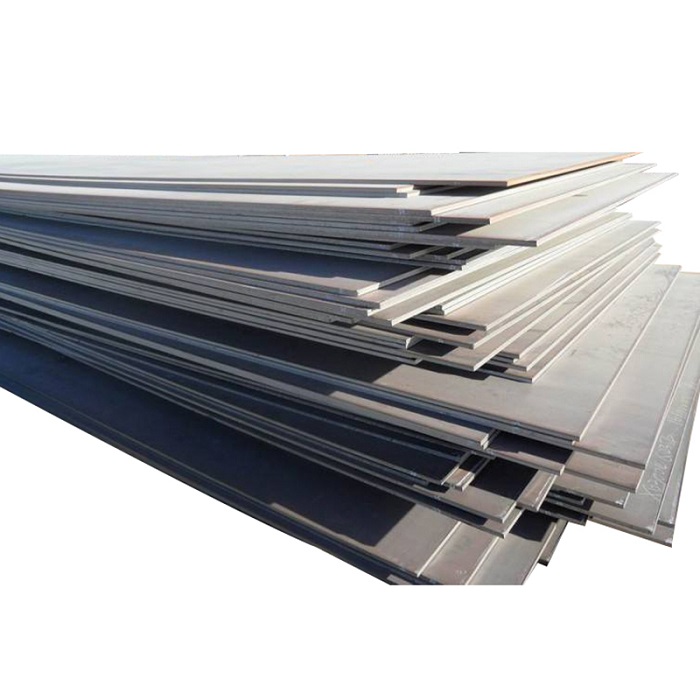

Wear Resistant Plate
Abrasion Resistant Steel Sheet is a highly durable and versatile material that offers superior protection against wear and tear. Its unique properties make it ideal for use in a wide range of industrial applications, where durability, strength, and resistance to corrosion are essential.
Specification
| Product name: | Wear resistant steel plate | |||
| Standard: | GB NM360, NM400, NM450, NM500, NM550, NM600 | ASTM XAR400, XAR450, XAR500, XAR550 | JIS NK-EH360, JFE-EH400, JFE-EH450, JFE-EH500 | |
| Thickness: | 6.0-200mm, etc | |||
| Width : | 1500-4100mm, etc | |||
| Length : | 2000-12000mm, etc | |||
| Standard : | ASTM, AISI, JIS, GB, DIN, EN | |||
| Certification : | ISO, SGS, BV | |||
| price terms : | FOB, CRF, CIF, EXW all acceptable | |||
| Delivery Detail : | inventory About 5-7; custom-made 25-30 | |||
| Loading port : | any port in China | |||
| Packing : | standard export packing (inside: water proof paper,outside:steel covered with strips and pallets) | |||
| Payment Terms : | T/T, L/C at sight, West Union, D/P, D/A, Paypal | |||
| Container size: | 20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High) | |||
| 40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High) | ||||
| 40ft HC: 12032mm(Length)x2352mm(Width)x2698mm(High) | ||||
| Grade | Rank | Chemical Composition( %) | ||||
| C | Mn | Si | S | P | ||
| Q195 | 0.06~0.12 | 0.25~0.50 | ≤0.3 | ≤0.05 | ≤0.045 | |
| Q215 | A | 0.09~0.15 | 0.25~0.55 | ≤0.3 | ≤0.05 | ≤0.045 |
| B | ≤0.045 | |||||
| Q235 | A | 0.14~0.22 | 0.30~0.65 | ≤0.3 | ≤0.05 | ≤0.045 |
| B | 0.12~0.20 | 0.30~0.70 | ≤0.045 | |||
| C | ≤0.18 | 0.35~0.80 | - | ≤0.04 | ≤0.04 | |
| D | ≤0.17 | ≤0.035 | ≤0.035 | |||
| Q255 | A | 0.18~0.28 | 0.40~0.70 | ≤0.3 | ≤0.05 | ≤0.045 |
| B | ≤0.045 | |||||
| Q275 | 0.28~0.38 | 0.50~0.80 | ≤0.35 | ≤0.05 | ≤0.045 | |
Abrasion Resistant Steel Plate Applications
The AR235 plates are intended for moderate wear applications where it offers improved wear resistance relative to structural carbon steel.
The AR400 are premium abrasion resistant steel plates that are heat-treated and exhibit through-hardening. Improved forming and weding capabilities.
AR450 is an abrasion resistant plate used in a variety of applications where slightly greater strength is desired beyond AR400.
AR500 plates are suitable for mining, forestry and construction applications.
AR600 is utilized in high-wear areas such as aggregate removal, mining, and the manufacture of buckets and wear bodies.
Abrasion Resistant (AR) steel plate is typically made in the as-rolled condition. These types/grades of steel plate products have been developed specifically for long service life in harsh conditions. AR products are suitable for a variety of applications in areas such as mining/quarrying, conveyors, material handling and construction, and earthmoving. Designers and plant operators choose AR plate steel when striving to extend service life of critical components, and reduce the weight of each unit put into service. The benefits of employing wear-resistant plate steel in applications involving impact and/or sliding contact with abrasive material are immense.
Abrasive resistant alloy steel plates generally offer good resistance to sliding and impact abrasion. The high carbon content in the alloy increases the hardness and toughness of the steel, making it an ideal material for applications that require high impact or high abrasion resistance. It is possible to get high hardness with a high carbon steel, and the steel will have good resistance to penetration. However, the wear rate will be rapid compared to heat treated alloy plate because high carbon steel is brittle, so particles can be more easily torn from the surface. As a result, high carbon steels are not used for high wear applications.
Why Choose us?
(1) High quality steel tube with reasonable price.
(2) Wide excellent experiences with after-sale service.
(3) Every process will be checked by responsible QC which insures every product's quality.
(4) Professional packing teams which keep every packing safely.
(5) Trial order can be done in one week.
(6) Samples can be provided as your requirements.
FAQ
Q1. Are you a manufacturer or trader?
We are a manufacturer, and we can have our own factory produced many steel products.
Q2. Whether your company supports Trade Assurance order?
Yes, we can (100% product quality protection; 100% on-time shipment protection; 100% payment protection)
Q3. Can we get the some samples? Any charges?
Yes, you can get available samples in our stock. If the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order.
Q4. How do we build up business relations with your company?
Send us your requirement which includes size, coating info, parameters, quantity, destination .
Q5. What is the MOQ?
We can accept small orders.Please feel free to contact us, we can meet your requirements.
Q6. What's your advantage?
With high-quality products and efficient customer service, we adhere to the principle of customer first.
Q7. How long is your delivery time?
Delivered within 15 days after receipt of deposit.
