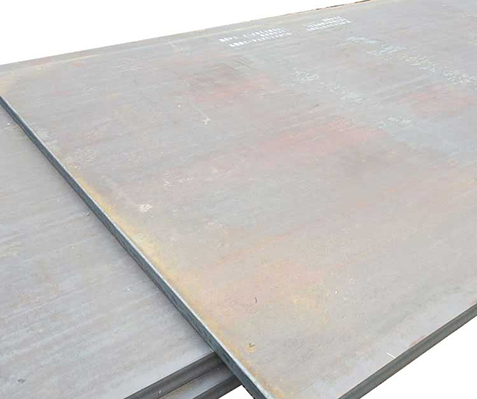

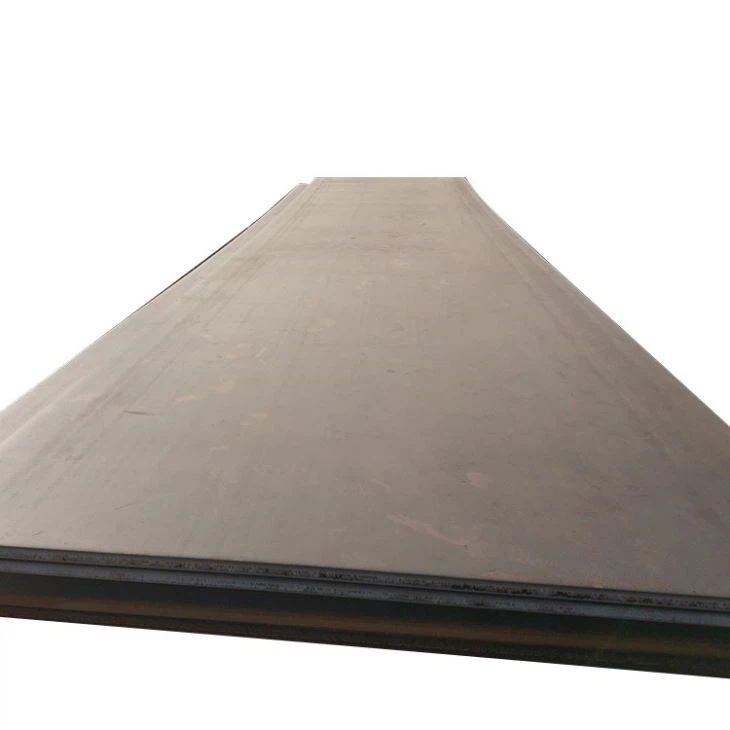

Pressure Vessel Plate
ASTM A516 / SA516 plate material is the standard specification for pressure vessel fabrication. ASTM A537 / SA537 plate material is heat-treated, carbon-manganese silicon steel. ASTM A553 / SA553 plate material is used in the fabrication of cryogenic pressure vessels.
Plate can be cut to size or shape required. Also available to JIS, DIN, EN standards.
Specification
| Steel Grade | C | Si | Si (Min) | Mn | Mn (Min) | P | S |
| A516 Gr.60 | 0.23 | 0.45 | 0.13 | 1.3 | 0.79 | 0.035 | 0.035 |
| A516 Gr.65 | 0.26 | 0.45 | 0.13 | 1.3 | 0.79 | 0.035 | 0.035 |
A516 Gr.70 | 0.28 | 0.45 | 0.13 | 1.3 | 0.79 | 0.035 | 0.035 |
| A516 Gr.60 | A516 Gr.65 | A516 Gr.70 | |
| Tensile Strength (ksi) | 60-80 | 65-85 | 70-90 |
| Tensile Strength (MPa) | 415-550 | 450-585 | 485-620 |
| Yield Strength (ksi) | 32 | 35 | 38 |
| Yield Strength (MPa) | 220 | 240 | 260 |
| Elongation in 200mm (%) | 21 | 19 | 17 |
| Elongation in 50mm (%) | 25 | 23 | 21 |
| Max Thickness (mm) | 205 | 205 | 205 |
| Standard | Grade |
| ASTM/ASME | A516/A516M, A515/A515M, A537/A537M, A204/A204M, A387/A387M, A299/A299M, A285/A285M, A533/A533M, A203/A203M, A302/A302M |
| EN10028 | P235GH, P265GH, P295GH, P355GH, 16Mo3 |
| P275/P355/P460N, NH, NL1, NL2 | |
| P355/P420/P460M, ML1, ML2 | |
| P355/P460/P500/P690Q, QH, QL1, QL2 | |
| DIN 17155 | HI,HII,17Mn4,19Mn6,15Mo3,13CrMo44,10CrMo910 |
| JIS | SB410,SB450,SB480,SB450M,SB480M |
| SPV235,SPV315,SPV355,SPV410,SPV450,SPV490 | |
| GB | GB713 Q245R, Q345R, Q370R, 18MnMoNbR, 13MnNiMoR, 15CrMoR, 14Cr1MoR, 12Cr2Mo1R, 12Cr1MoVR |
| GB3531 16MnDR, 15MnNiDR, 09MnNiDR |
Features
* High strength: Pressure vessel plates are made of high-strength steel that can withstand high pressure without deforming or breaking.
* Good toughness: Pressure vessel plates have good toughness, which means they can absorb energy without breaking or cracking.
* Corrosion resistance: Pressure vessel plates are often made of alloyed steel that has good corrosion resistance, which is important for applications where the vessel is exposed to corrosive substances.
* High temperature resistance: Pressure vessel plates are designed to withstand high temperatures, which is important for applications where the vessel is exposed to high heat.
* Uniformity: Pressure vessel plates are manufactured using special techniques that ensure their uniformity and consistency, which is important for ensuring the safety and reliability of the vessel.
Application
boilers
calorifiers
columns
dished ends
filters
flanges
heat exchangers
pipelines
pressure vessels
tank cars
storage tanks
valves
Why Choose us?
(1) High quality steel tube with reasonable price.
(2) Wide excellent experiences with after-sale service.
(3) Every process will be checked by responsible QC which insures every product's quality.
(4) Professional packing teams which keep every packing safely.
(5) Trial order can be done in one week.
(6) Samples can be provided as your requirements.
FAQ
Q1. Are you a manufacturer or trader?
We are a manufacturer, and we can have our own factory produced many steel products.
Q2. Whether your company supports Trade Assurance order?
Yes, we can (100% product quality protection; 100% on-time shipment protection; 100% payment protection)
Q3. Can we get the some samples? Any charges?
Yes, you can get available samples in our stock. If the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order.
Q4. How do we build up business relations with your company?
Send us your requirement which includes size, coating info, parameters, quantity, destination .
Q5. What is the MOQ?
We can accept small orders.Please feel free to contact us, we can meet your requirements.
Q6. What's your advantage?
With high-quality products and efficient customer service, we adhere to the principle of customer first.
Q7. How long is your delivery time?
Delivered within 15 days after receipt of deposit.
