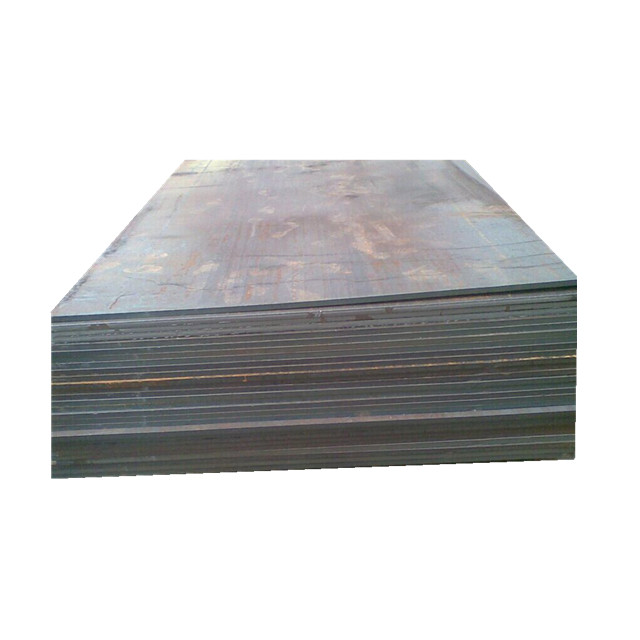

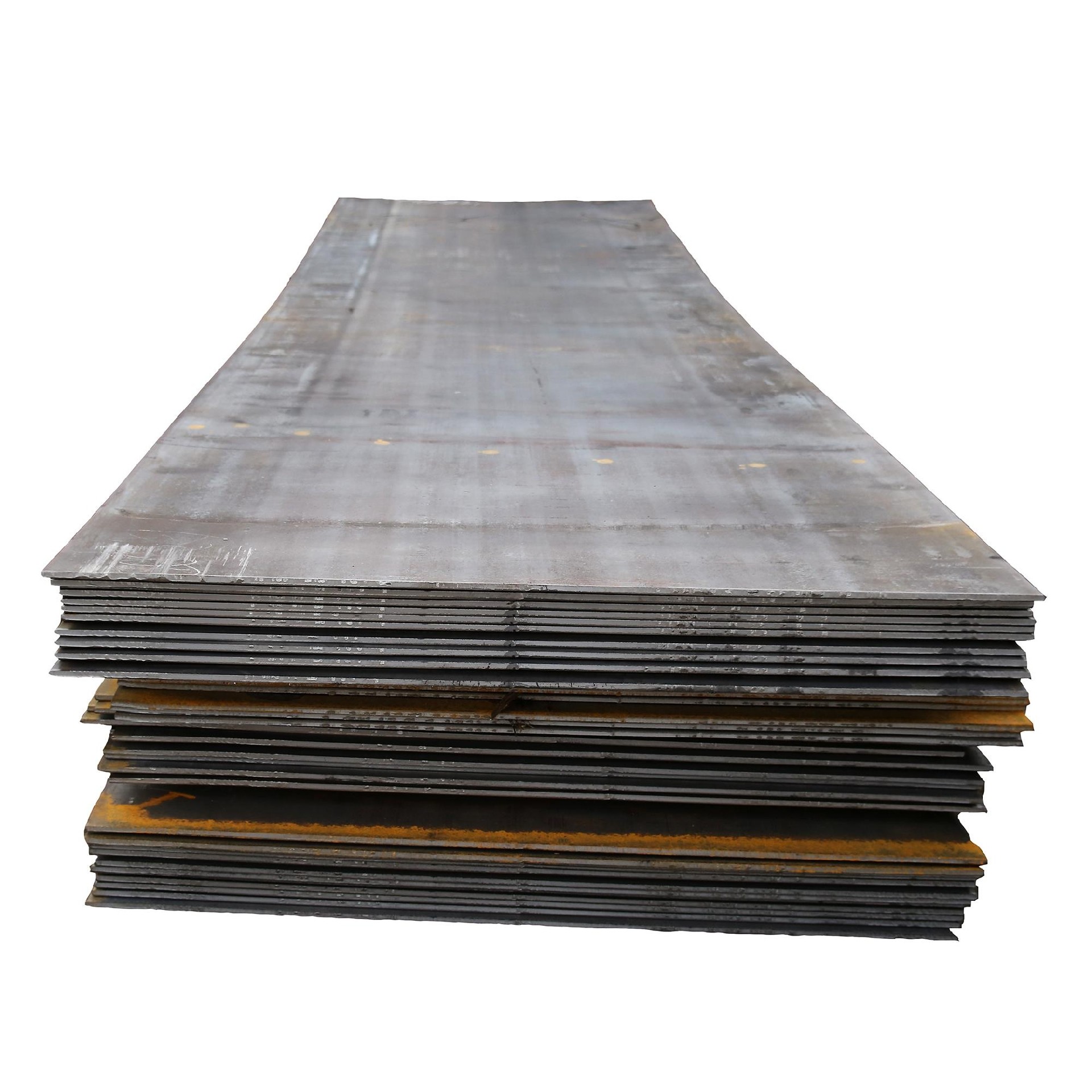

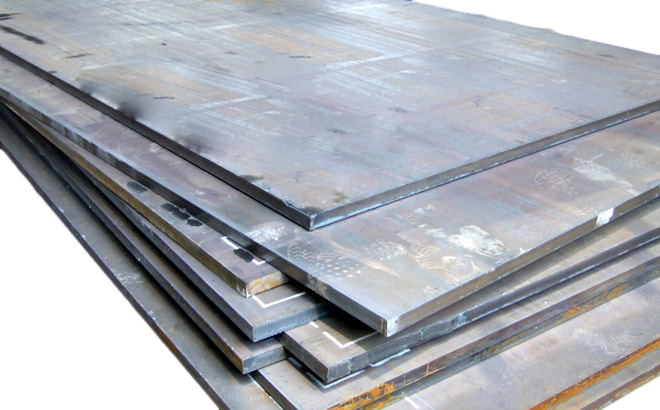

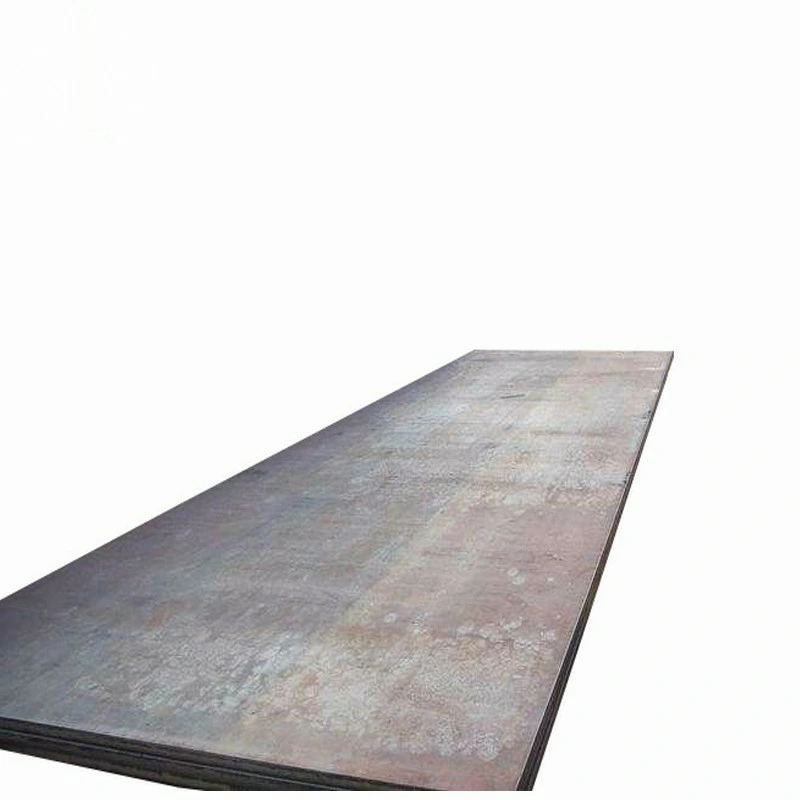

Pressure Vessel Plate
A516 is a carbon steel plate grade utilized primarily in welded pressure vessels for moderate to lower temperature service. This material is produced in grades 55, 60, 65 and 70. This material is also offered in the normalized condition where improved notch toughness is required.
Specification
| Steel Grade | C | Si | Si (Min) | Mn | Mn (Min) | P | S |
| A516 Gr.60 | 0.23 | 0.45 | 0.13 | 1.3 | 0.79 | 0.035 | 0.035 |
| A516 Gr.65 | 0.26 | 0.45 | 0.13 | 1.3 | 0.79 | 0.035 | 0.035 |
A516 Gr.70 | 0.28 | 0.45 | 0.13 | 1.3 | 0.79 | 0.035 | 0.035 |
| A516 Gr.60 | A516 Gr.65 | A516 Gr.70 | |
| Tensile Strength (ksi) | 60-80 | 65-85 | 70-90 |
| Tensile Strength (MPa) | 415-550 | 450-585 | 485-620 |
| Yield Strength (ksi) | 32 | 35 | 38 |
| Yield Strength (MPa) | 220 | 240 | 260 |
| Elongation in 200mm (%) | 21 | 19 | 17 |
| Elongation in 50mm (%) | 25 | 23 | 21 |
| Max Thickness (mm) | 205 | 205 | 205 |
| Standard | Grade |
| ASTM/ASME | A516/A516M, A515/A515M, A537/A537M, A204/A204M, A387/A387M, A299/A299M, A285/A285M, A533/A533M, A203/A203M, A302/A302M |
| EN10028 | P235GH, P265GH, P295GH, P355GH, 16Mo3 |
| P275/P355/P460N, NH, NL1, NL2 | |
| P355/P420/P460M, ML1, ML2 | |
| P355/P460/P500/P690Q, QH, QL1, QL2 | |
| DIN 17155 | HI,HII,17Mn4,19Mn6,15Mo3,13CrMo44,10CrMo910 |
| JIS | SB410,SB450,SB480,SB450M,SB480M |
| SPV235,SPV315,SPV355,SPV410,SPV450,SPV490 | |
| GB | GB713 Q245R, Q345R, Q370R, 18MnMoNbR, 13MnNiMoR, 15CrMoR, 14Cr1MoR, 12Cr2Mo1R, 12Cr1MoVR |
| GB3531 16MnDR, 15MnNiDR, 09MnNiDR |
Features
* High strength: Pressure vessel plates are made of high-strength steel that can withstand high pressure without deforming or breaking.
* Good toughness: Pressure vessel plates have good toughness, which means they can absorb energy without breaking or cracking.
* Corrosion resistance: Pressure vessel plates are often made of alloyed steel that has good corrosion resistance, which is important for applications where the vessel is exposed to corrosive substances.
* High temperature resistance: Pressure vessel plates are designed to withstand high temperatures, which is important for applications where the vessel is exposed to high heat.
* Uniformity: Pressure vessel plates are manufactured using special techniques that ensure their uniformity and consistency, which is important for ensuring the safety and reliability of the vessel.
Application
boilers
calorifiers
columns
dished ends
filters
flanges
heat exchangers
pipelines
pressure vessels
tank cars
storage tanks
valves
